  17   Wed Aug 19 15:41:17 2009 Wolfgang KiesenhoferSiLCangle scan templates

Linie am rechten Seitenrand (in der Vorschau unten leider nicht gut zu sehen) sollte mit dem rechten Rand der Basisplatte abschließen (bezogen auf die Beam Richtung).

Attachment 1: angle_scan0.pdf
angle_scan0.pdf
Attachment 2: angle_scan5.pdf
angle_scan5.pdf
Attachment 3: angle_scan10.pdf
angle_scan10.pdf
Attachment 4: angle_scan15.pdf
angle_scan15.pdf
Attachment 5: angle_scan20.pdf
angle_scan20.pdf
Attachment 6: angle_scan25.pdf
angle_scan25.pdf
Attachment 7: angle_scan30.pdf
angle_scan30.pdf
Attachment 8: angle_scan35.pdf
angle_scan35.pdf
Attachment 9: angle_scan40.pdf
angle_scan40.pdf
Attachment 10: angle_scan45.pdf
angle_scan45.pdf
Attachment 11: angle_scan50.pdf
angle_scan50.pdf
Attachment 12: angle_scan55.pdf
angle_scan55.pdf
Attachment 13: angle_scan60.pdf
angle_scan60.pdf

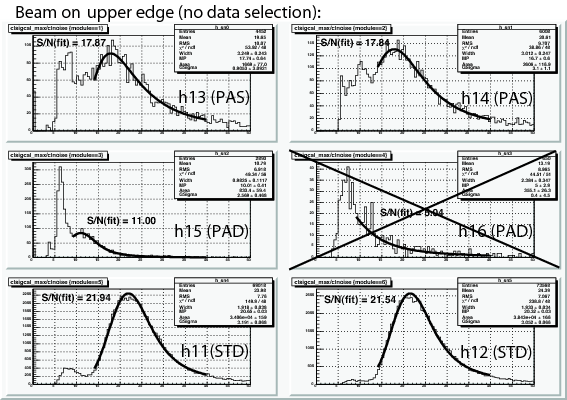

  55   Fri Aug 21 17:14:58 2009 Wolfgang Kiesenhofer S/N Histograms Raw (no data selection)run001 (strips), run002 (pitch adapter), run003 (upper edge)
Attachment 1: sn_langaufit_raw_strips.pdf
sn_langaufit_raw_strips.pdf
Attachment 2: sn_langaufit_raw_pa.pdf
sn_langaufit_raw_pa.pdf
Attachment 3: sn_langaufit_raw_edgerun.pdf
sn_langaufit_raw_edgerun.pdf
  67   Sat Aug 22 13:28:53 2009 Wolfgang KiesenhoferPt_ITE512runlist for pt-module angle-scan

Preliminary run list for pt-modules + ite512 + silc1, silc2, silc5, silc6

run angle[deg] pos height (xy-table) importance events
1 1 center module   + 10k
2 2 center module   + 10k
3 3 center module   + 10k
4 4 center module   + 10k
5 5 center module   + 10k
6 6 center module   + 10k
7 7 center module   + 10k
8 8 center module   +  10k
9 9 center module   +  10k
10 10 center module   +  10k
11 12 center module   + 10k
12 14 center module   - 10k
13 16 center module   - 10k
14 0 center module   + ? depends on ite512
15 0 upper pos   + 10k
16 0 lower pos   + 10k



  106   Wed Aug 26 14:26:13 2009 Wolfgang KiesenhoferITE128S/N final Single-Metalrun001 & run002

Most probable S/N, Single Metal Layer, 2D histogram fitted with langau in 5 bin (strips) slices.

Attachment 1: sn-pos_h13-h14_strips_pa_5bins.pdf
sn-pos_h13-h14_strips_pa_5bins.pdf
  107   Wed Sep 2 14:15:17 2009 Wolfgang KiesenhoferITE128ITE 128 Cross-Talkrun002

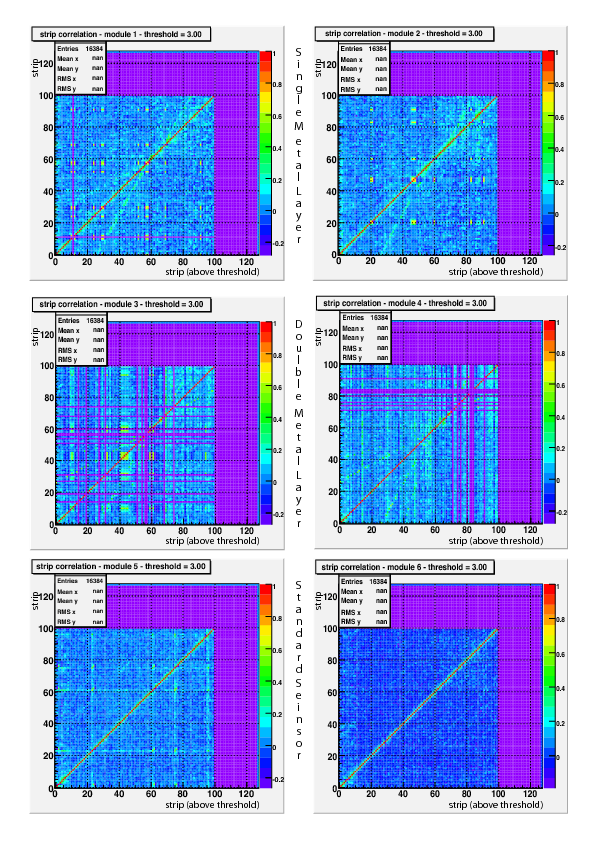

Preliminary strip correlation (Kendalls Tau) for threshold = 3*stripnoise.

Attachment 1: stripcorr_modall_thrs3_ktau.pdf
stripcorr_modall_thrs3_ktau.pdf
  114   Fri Dec 4 12:21:56 2009 Wolfgang Kiesenhofer ITE128 strip correlation kendall tau (preliminary result)

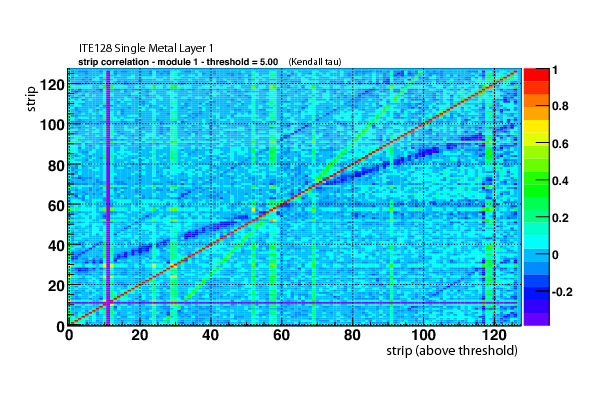

Kendall tau (rank correlation) for module 1 (single layer 1 / h13), module 2 (single layer 2 / h14),  module 6 (standard sensor 2 / h12)





Attachment 1: stripcorr_mod1_thrs5_ktau_ev100000_run002_strip.pdf
stripcorr_mod1_thrs5_ktau_ev100000_run002_strip.pdf
Attachment 2: stripcorr_mod2_thrs5_ktau_ev100000_run002_strip.pdf
stripcorr_mod2_thrs5_ktau_ev100000_run002_strip.pdf
Attachment 3: stripcorr_mod6_thrs5_ktau_ev100000_run002_strip.pdf
stripcorr_mod6_thrs5_ktau_ev100000_run002_strip.pdf
